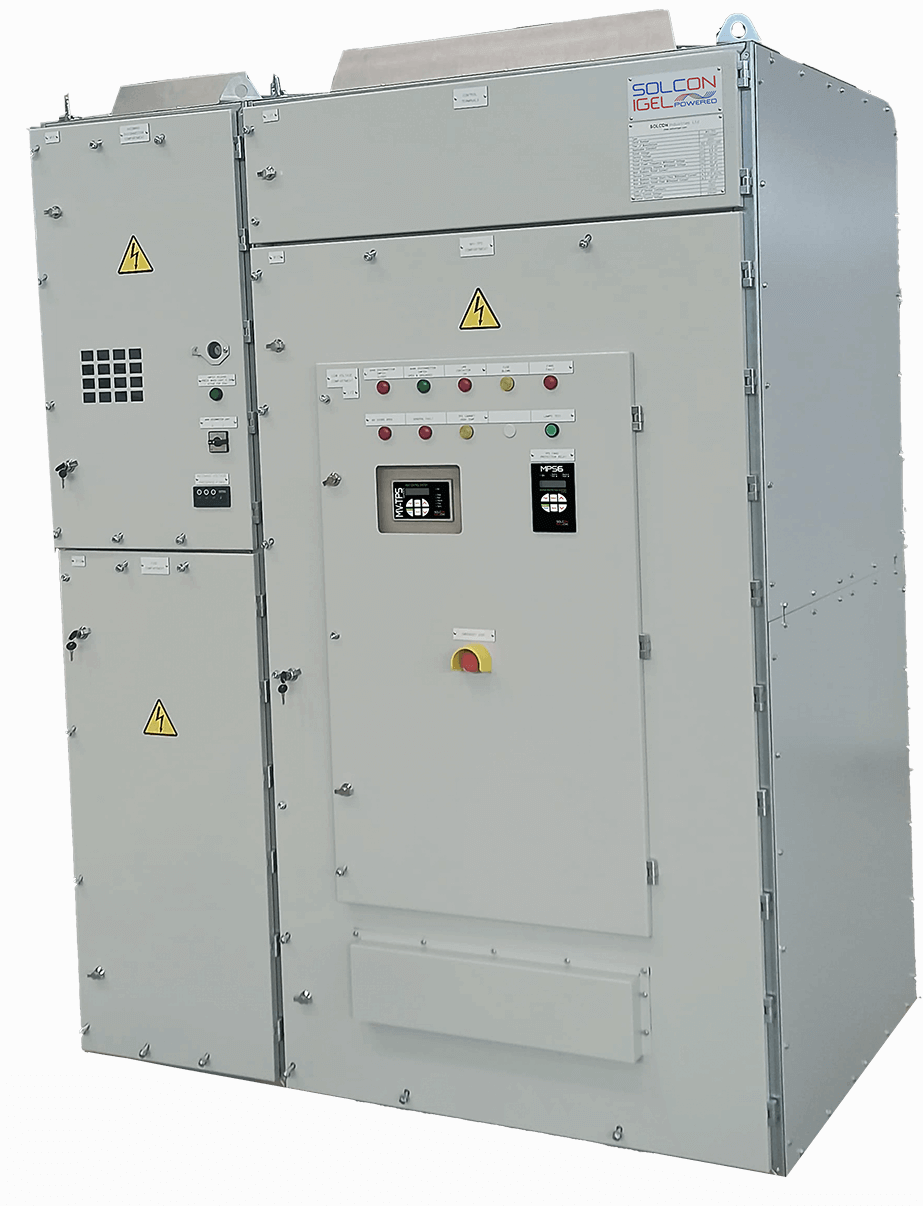

MV TPS Medium Voltage Heat Control System

MV-TPS
Medium Voltage Heat Control System

(SI-MHCS )
MV TPS Medium Voltage Heat Control System
Rated operational current
70 A to 500 A
Rated Supply Voltage
up to 13.8kV

The MV TPS Medium Voltage Heat Control System, an advanced heavy-duty control power unit designed to revolutionize Medium Voltage heating applications. Developed by Solcon-IGEL, this innovative device boasts a zero-crossing 3-phase control mechanism, guaranteeing unparalleled performance and reliability. It is perfect Industrial Thermal Management Solution for heavy industries.

Solcon-IGEL’s Medium Voltage technology integrated into the MV-TPS offers a host of advantages for Industrial applications, including reduced cable requirements, minimized footprint for heating elements and electrical equipment cabinets, and the elimination of costly step-down transformers. These benefits translate into substantial cost savings for your operations.

The MV-TPS stands out as the premier choice for all Medium Voltage Industrial heating applications, thanks to its superior features and unmatched efficiency.

Experience the future of heat control technology with Solcon-IGEL’s MV-TPS Medium Voltage Heat Control Systems.



Advantages

  • Fully digital
  • Zero crossing phase control
  • Cooling Method: Forced air
  • Ambient. Temp: 0 – 50ºC
  • Continuous Duty
  • Single, Two or Three phase control
  • Input 0-10VDC, 4-20mA or 0-20mA
  • RS-485-Modbus-RTU; Optional Profinet, Profibus; Modbus TCP-IP
  • Load shedding – synchronization
  • LCD display (2 line 16 characters)
  • LEDs: ON, Start, Stop, Alarm, Trip

Features

  • Single, Two or Three phase control
  • Zero crossing & phase control (field programmable)
  • Comprehensive protection package
  • Modbus
  • Line and Inside delta connection
  • Synchronized mode
  • 0-10V / (0)4-20mA  Set point control

Options

  • Remote keypad
  • Profinet, Profibus; Modbus TCP-IP
  • Analog output
  • Conformal coating
  • Remote Panel mounting
  • Synchronization mode
  • Potentiometer control
  • 0-10V / (0)4-20mA  Set point control

Applications

Process
Oil & Gas
Mixer
PipeLine Heating
PipeLine Heating
