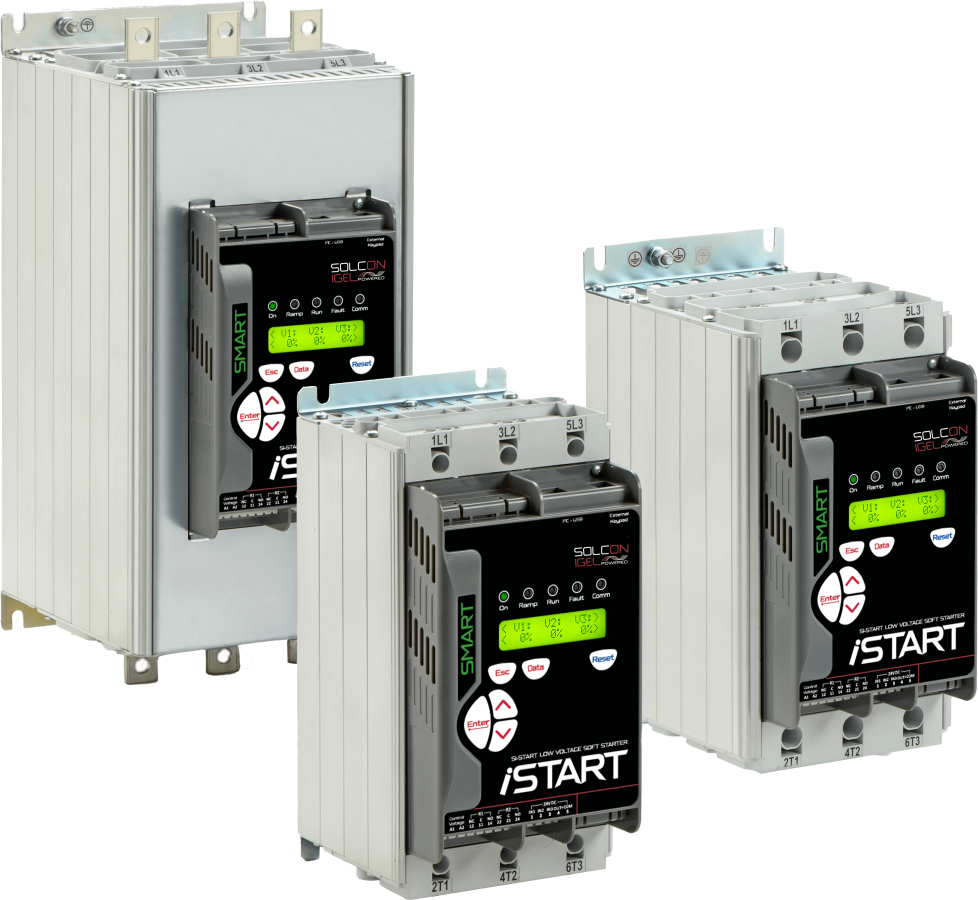

iSTART
Compact Control for Standard Industrial Loads
The iSTART is Solcon-IGEL Group’s most advanced Low Voltage soft starter, featuring full 3-phase control and an integrated bypass for optimal efficiency. Designed for versatility, it delivers smooth soft start and soft stop functionality, making it an ideal solution across a wide range of industrial applications.
Reliable Performance and Built-In Motor Protection
Moreover, iSTART includes a comprehensive motor protection package that ensures long-term operational reliability. The built-in bypass reduces heat dissipation and energy losses, contributing to excellent performance in a compact and user-friendly design.
Simple Commissioning and Application Flexibility
In addition, the iSTART is easy to commission and simple to operate. It offers acceleration control, adjustable current limits on every start, and five selectable starting curves tailored for pumps, generators, and other torque-sensitive applications.
Features
- Universal Interchangeable Control Module
- Multi-language user interface
- Real-time, online, 99 event and trip log (including currents, voltages)
- Optimized for high efficiency motors (IE3)
- 2-phase mode for on-site phase fault operation
- Basic, professional and expert set-up menus
- User defined metering and monitoring of 3-phase voltages, 3-phase currents and power factor
- USB interface for setup and software updates
- Option cards include Analogue Output Including Thermistor, three Thermal Sensors, Motor Insulation Monitor
- Auto reset for selected faults
- Low voltage soft starter with 3 Thermistor inputs
- Frequency auto tracking 45-65 Hz
- Inline and inside delta connection
- 3 Current transformers
Options
Advantages
- Soft start and soft stop
- Kick start
- Restart delay (3 sec)
- Under voltage
- Phase sequence
- Shear-pin current
- Under current
- Overload classes (IEC, NEMA)
- Current imbalance
- Ground fault
- Excessive number of starts
- Excessive starting time
- Soft starter over temperature
- Programmable external fault
- Phase loss
- Inside delta wrong connection alarm
Applications
FAQ
It is an electronic device that reduces the inrush current and torque during motor startup, improving system reliability and minimizing mechanical stress.
- iStart is a robust industrial-grade soft starter for motors up to 1100A.
- RVS-DX is a compact, user-friendly soft starter ideal for standard industrial applications up to 100A.
The protection features included are:
- Overload
- Under/Over voltage
- Phase loss
- Stall protection
- Bypass contactor over-temperature
Yes. The iStart soft starter supports Modbus communication and offer digital and analog I/Os for integration.
iStart is typically used in applications such as pumps, compressors, conveyors, HVAC systems
