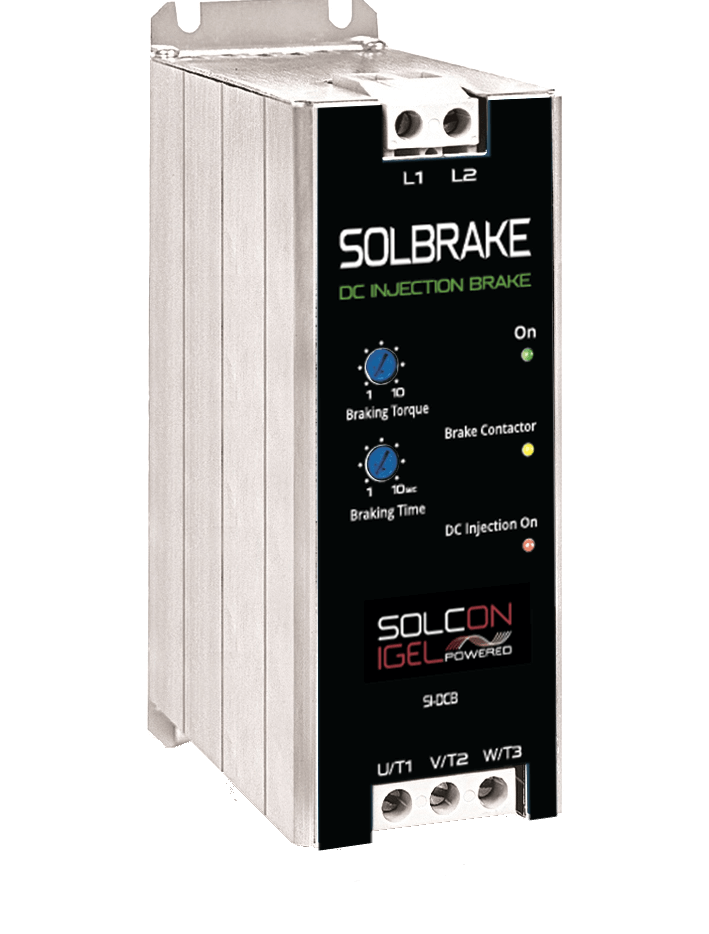

Solbrake - DC Injection Brake

DC Injection Brake

Solbrake - DC Injection Brake
Rated operational current
10 to 820 A
Main voltage
208V – 690V
Download brochure Download

SOLBRAKE injection brake uses direct current (DC) to brake AC motors.

The current is applied to the running motor as soon as the voltage is switched off. This proves to be extremely effective and efficient when it comes to braking AC motors such as in sawmills.


  • Reduces stopping time – Increases production rate in machine tools and high inertia loads
  • Increases safety protection on hazardous machines
  • Soft, smooth stopping, preventing wear and tear of mechanical parts
  • Adjustable braking torque, matching load size and required stop time
  • Auto stop, reducing motor heating
  • Maintenance free, highly reliable operation
  • Easy installation


  • Range 8-820A, 208-690V
  • Reduces stopping time of high inertia loads
  • Adjustable braking time
  • Auto stop – DC Injection stops when the motor stops
  • DIN rail mounting
  • Easy to install and simple to operate


  • 2-phase control
  • Modbus
  • Profibus
  • DeviceNet
  • Insulation test
  • Analog output
  • Multi motor soft-start/stop


Industrial Saw
